Heat Treatment

  • SCADA Controlled

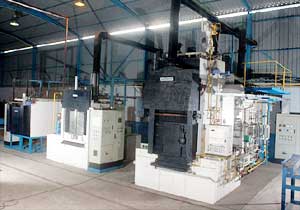

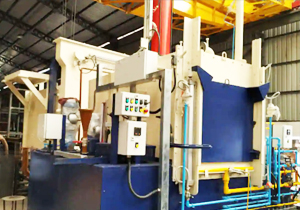

  • Sealed Quench Furnace & Pit Type Furnaces
  • High Temperature Tempering
  • Washing machine
  • CNC Induction Hardening

Multitech also has facilities for:


  • Pretreatment
  • Powder Coating

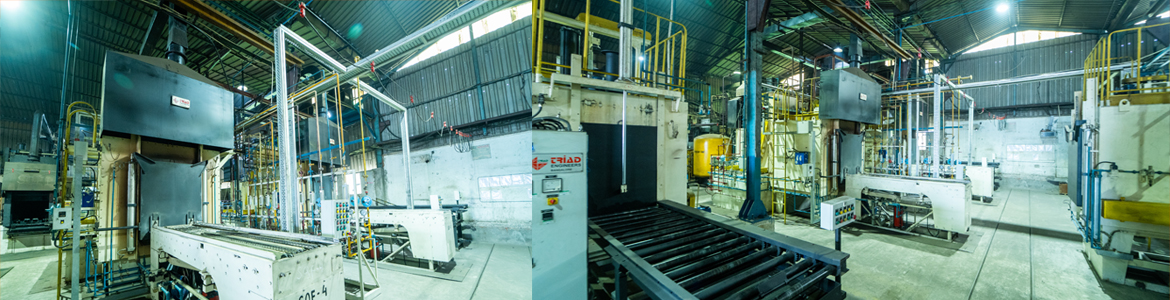

Machine Facilities

# Furnace/Machine Working Dimension in mm Process Capacity Nos. SYSTEM Control
1 Sealed Quench Furnace 1106 X 546 X 650 Case Hardening , Carbo Nitiriding & Volume Hardening 600 kg 1 SCADA
2 Sealed Quench Furnace L 1240 X W 600 X H 650 Case Hardening , Carbo Nitiriding & Volume Hardening 800 kg 1 SCADA
3 Sealed Quench Furnace L 1240 X W 600 X H 900 Case Hardening , Carbo Nitiriding & Volume Hardening 1200 kg 2 SCADA
4 ADI Salt Quench Furnace L 1230 X W 760 X H 850 Austemper Ductile Iron,Carbo-Austempering & Ausquenching 1200 Kg 1 SCADA
5 PIT FURNACE D 600 X L 1100 mm Case Hardening & Volume Hardening 600 kg 4 Auto Carbon potential Controller
6 PIT FURNACE D 900 X L 1500 Case Hardening & Volume Hardening 1200 kg 2 Auto Carbon potential Controller
7 Induction Hardening Double station Induction Hardening ( 1.0 to 4 mm) 50 KW 1 SCADA
8 Induction Hardening Double station Induction Hardening (2.0 to 4 mm ) 100 KW 3 SCADA
9 Induction Hardening Double station Induction Hardening ( 2 to 10 mm) 150 KW 2 SCADA
10 MPI D 100 X L 100 Surface/Sub Surface Crack detection Up to 4 mm Depth 2
11 Shot Blasting   Surface Cleaning 600 kg 1

Testing Machine

# Testing Machine Range
1 Brinell Hardness Tester 750/300 Kg
2 Micro Hardness Tester 100 -2000 gram
3 Metallurgical microscope 50X to 500X
4 Rockwell Hardness Testers A,B,C
5 Sample Preparation
6 Sample Cutting Machine
7 Belt Polishing machine
8 Sample mounting
9 Cloth Polishing machine
